LINATEX 806 Soft Wall Slurry

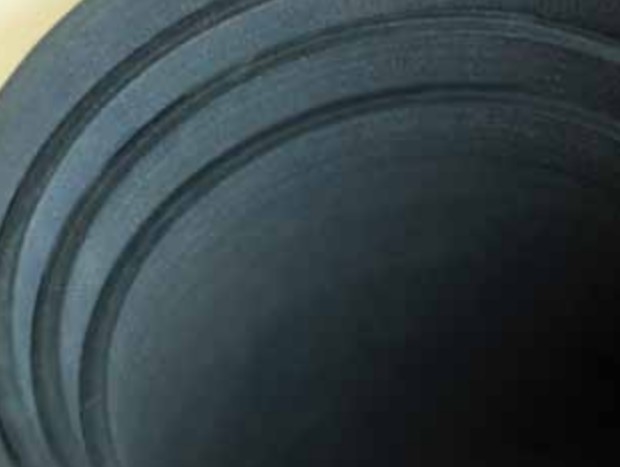

Linatex ® Soft Wall Slurry Hose (806) Technical Specifications A durable and robust hose The Linatex ® 806 soft wall slurry hose is a durable, non-wire hose construction manufactured specifically for discharge applications. The construction allows for flexibility under pressure and removes the risk of permanent deformation that may occur through mishandling or over-flexing of the hose. The robust design delivers performance and reliability in the most arduous of mining applications\ and protects your site asset from early failure due to external damage. We understand that each of our customers has unique and specific requirements, so each of our hoses is custom manufactured to suit the duty at hand. Our flexible design and manufacturing versatility allows us to provide customised internal diameters, lengths, design pressures, and end coupling arrangements. Design Features • Durable construction with high tensile reinforcement cord • Allows for compression and rebound • Inbuilt end connections • Available with Linatex ®, Linacure ® or Linard ® abrasion resistant internal wear liners • Designed and manufactured to customer requirements Properties • Nominal bores from 50mm (2”) to 1000mm (40”)* • Lengths up to 15m (50ft)** • Operating temperature -35°C to +75°C (-31°F to +167°F) • Discharge duties only • Typical bend radius of 12D Minerals Applications Pumping and transfer of abrasive slurries under pressure for: • Mineral sands stacker lines • Sand and gravel transfer • High pressure tailings lines • Intake and discharge connectors * Custom internal diameters are also available. ** Product specifications are subject to regional variations. Copyright © 2015, Weir Minerals Australia Ltd. All rights reserved. WEIR and WEIR (logo) are trademarks and/or registered trademarks of Weir Engineering Services Limited. LINATEX, LINARD, LINACURE and the LINATEX RED COLOUR are trademarks and/or registered trademarks of Linatex Ltd. WMD0144/025017 Weir Minerals linatex@mail.weir www.minerals.weir Typical Physical Properties NOMINAL BORE TYPICAL WEARLINER THICKNESS WORKINGPRESSURE BEND RADIUS mm in mm in kPa mm ft 50 2 6 ¼ Atmospheric Pressure to 5000 kPa 600 1.97 80 3 6 ¼ 900 2.95 10 0 4 6 ¼ 120 0 3.94 125 5 6 ¼ 150 0 4.92 150 6 6 ¼ 180 0 5.91 200 8 6 ¼ 2400 7.87 250 10 10 3?8 3000 9.84 300 12 10 3?8 3600 11.81 350 14 10 3?8 4200 13.78 400 16 12 ½ 4800 15.75 450 18 12 ½ 5400 17.72 500 20 12 ½ 6000 19.69 600 24 12 ½ 7200 23.62 Wear liner composition is critical to the performance of your Linatex ® rubber hose. With over 90 years of rubber manufacturing experience, we have the expertise to select the best compound for your specified application. Our superior Linatex ® rubber compounds provide your application with outstanding wear resistance and extended wear life. This is designed to achieve the lowest total cost of ownership for all our hoses. For more information, please refer to our range of Linatex ® rubber technical specification sheets.
