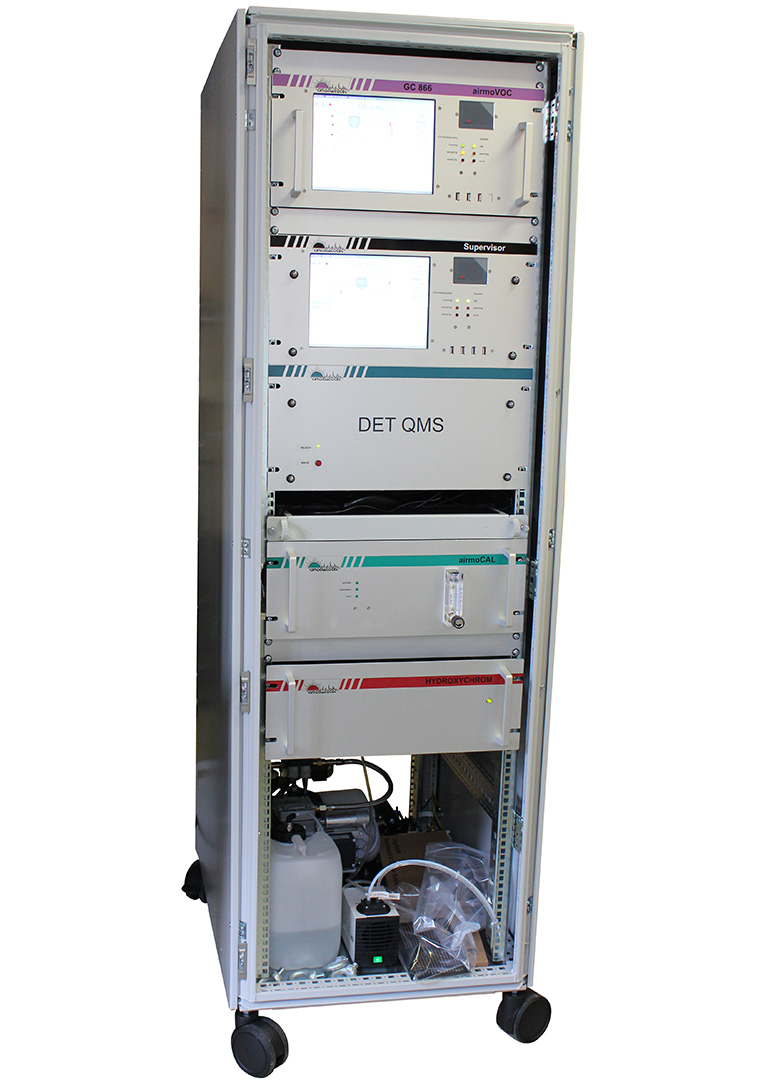

ONLINE GAS ANALYZER EXPERTS WWW.CHROMATOTEC.COM airmoSCAN XPERT: VOC + PAH Trap GC-MS / FID system TSP GAS ANALYZER GC 866 Updated: March 2017 Turnkey solution for continuous analysis of PAH, VOC including BTEX and Dioxine Precursors Chromatotec ® is specialized in VOC, Sulfur and permanent gases analysis down to ultra trace levels (%, ppm, ppb, ppt). Please visit our website for more details F luorene naphthalene to 15 D ioxine p recursors pah 502.2/524 Environment: Urban/Industrial area pollution control BTEX/TO14/TO15 Hydrocarbons analysis Fenceline monitoring Process: Industrial Hygiene Fenceline New applications: Wastewater plant Head space or purge and Trap: drinking water INDOOR or outdoor air: ambient air monitoring Heated line is delivered with the instrument EPA Method 610 EPA Method 8100 to 14 For information, Polycyclic Aromatic Compounds: PAH, PCB, dioxins, furanes... 2010 2006 1996 2013 EN 14662-3EN 15267-1EN 15267-2 Certified H2 generator Calibration system Process Mass spectrometer Zero air generator auto GC 866 Selected by US EPA Supervisor WWW.CHROMATOTEC.COM To contact us: info@chromatotec.com airmoSCAN XPERT: VOC + PAH Trap GC-MS / FID system Turnkey solution for continuous analysis of PAH, VOC including BTEX and Dioxine Precursors NORTH AMERICACHROMATOTEC Inc.18333 Egret Bay Blvd, Suite 270,Houston TX 77058 - USAPhone: +1 (281) 335 4944Fax: +1 (281) 335 4943 EUROPEAIRMOTEC AG SAS15 rue d’Artiguelongue33240 Val de Virvée, FRANCEPhone: +33 (0) 557 940 626Fax: +33 (0) 557 940 620 ASIA CHROMATOTEC Trading (Beijing) Co., Ltd.Room 1806, Building 1,Wanda Plaza, No.93, Jianguo Avenue,Chaoyang District,Beijing 100022 - CHINAPhone : +86 (0) 105 960 3283 Chromatotec ® is continuously improving its products, therefore these specifications are subject to change without notice Technical specifications : Detection limit : • Benzene down to 1 ppt with Trap GC/FID/QMS• Naphthalene 10 ppt or 0.05?g/m 3 Detection Range : • ppb, ppt to ppq • 0.5 to 45 ?g/m 3 (mCerts tests ) Relative Standard Deviation: • < 0.3 % over 48 h (RT)• < 3 % over 48 h (Conc) Cycle time : • 30 to 60 minutes (depending on applications) Results: • Data storage (timestamp)• 4-20mA current output (option)• MODBUS / JBUS or MGS1 communication protocol (option) Supervisor: • Embedded computer Windows ® based with LCD display • 32 GB of Hardware storage on SSD memory Gas supply: • H2 (FID and carrier gas): 30 ml/min (inlet 2 bars; 1/16’’ swagelock) • Air (FID): 180 ml/min (inlet 2 bars; 1/8’’ swagelock)• Sample inlet (vacuum pump) ¼’’ swagelock• CALIB in continuous: 50ml/ min• CALIB during validation: 250ml/min• Pneumatic valve: 90ml/ commutation Power supply: • Main (230 V / 115 V 50 Hz/60 Hz) Electrical consumption: • 1500 Watt maximum Dimensions: • 19’’ cabinet: 33 or 38 U• Width: 600 mm• Depth: 800 mm• Height: 33 or 38 U Description : airmoSCANXPERT VOC + PAH is a combination of two robust instruments, airmoVOC C5C16 expert and Process Quadrupole Mass Spectrometer (QMS), which allows quantification and identification of chemicals at ppb, ppt and ppq levels : VOCs, SVOCs, PAHs and dioxin precursors. airmoSCANXPERT VOC + PAH is delivered with gas generators and calibration system (in compliance with ISO 17025 for Benzene) The analyzer is tested more than one week in our quality control departm\ ent, then delivered and installed by our engineers. Once the instruments is s\ et and running, the operators can easily control the air quality. Vistachrom and MS software enable the users to view and store data on an industrial computer. It provides user friendly utilities to recalculate, calibrate, export data and to configure the measurement. Principle: The airmoSCANXPERT VOC + PAH uses an inbuilt heated sampling line with MFC to control the flow, an heated 6 ports valve with 1 sampling trap and a 30 meter metallic capillary column. A high temperature GC oven (up to 350°C) allow the speciation of the\ compounds and then a “Y” allow the sample to go simultaneously on\ the FID detector and the proces Quadrupole Mass Spectrometer. The integrated supervisor using industrial computer Windows based allows\ the control of the analyzers and generators. Vacuum pump for the process QMS, CALIB and gas generators are integrated in the cabinet to provide a turnkey solution. • Miniaturization, sensitivity, mobility and flexibility are its main features. Key points: Air monitoring with MCert auto GC 866 and Process Quadrupole Mass Spectrmeter Automatic quantification by GCMS in MID mode Automatic calibration and validation of the data Automatic calculation of toxicity index /total aromatics for VOCs, SVOCs\ , PAHs and dioxin precursor. Heated 6 ports GC valve Inbuilt heated line for sampling Modem & remote control installed and configurated into the computer Powerfull VISTACHROM and VISTAMS CHROMATOTEC software: - Remote monitoring & injection control - Full traceability with on board archiving of results and chromatograms - QC setup and control of threshold alarms - Data export by MODBUS / 4-20mA / 0-10 V - Time stamp results with full traceability Options : • Analog output 4-20 mA or 0 – 10 V or alarms • Heated multiplexor up to 8 streams • Purge and trap for liquid samples • airmoCAL MFC for multipoint calibration To order: airmoSCAN xpert VOC + pAH Model:
